Oil well drilling is an indispensable and important task in oil and gas exploration, and drill pipe, as one of the core components in oil well drilling, plays an important role. This article will systematically interpret the parameter characteristics and applicable scenarios of common oil drill pipes from three dimensions: length, diameter, and wall thickness, to assist in engineering selection and management.

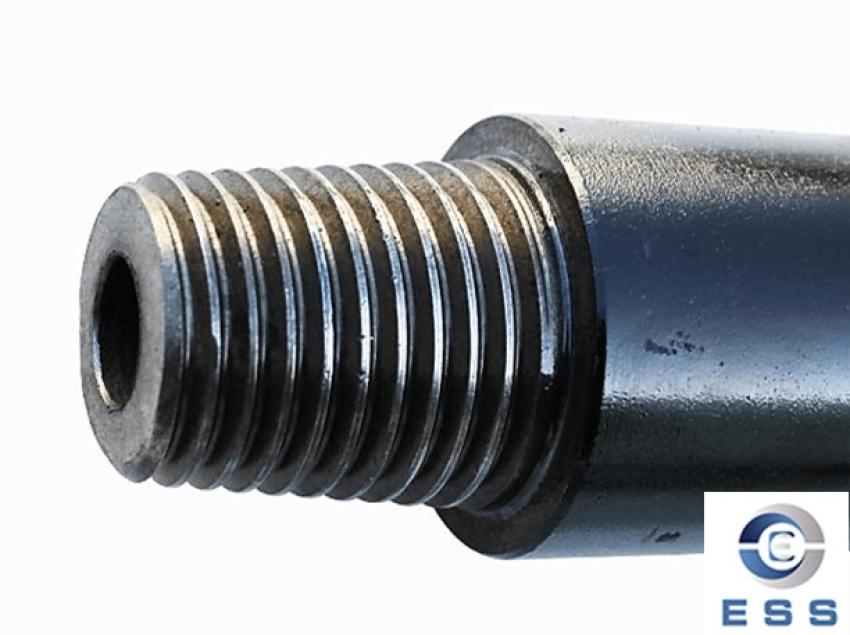

Oil drill pipe specifications and dimensions
The specifications and dimensions of oil drill pipes are usually divided into three parts: length, diameter, and wall thickness.
1. Length
The length of oil drill pipes is usually between 2 and 9 meters. Different lengths are suitable for oil well drilling at different depths, and also determine whether the drilling probe can reach the bottom of the well.
2. Diameter
The commonly used oil drill pipe diameters are 60mm, 73mm, 89mm, 102mm, etc. The larger the diameter, the greater the pressure on the drill pipe. Generally, drill pipes with larger diameters are suitable for wellheads with greater depths.
3. Wall thickness
The wall thickness of oil drill pipes is directly related to the load and service life it bears. Commonly used wall thicknesses are 7.1mm, 9.3mm, 9.5mm, 10.5mm, etc.
Application of oil drill pipes of different specifications
1. 60mm oil drill pipe
Suitable for drilling depths not exceeding 1000 meters, economical and lightweight, flexible to operate, and suitable for short-cycle shallow well operations. Generally used for shallow holes near the wellbore, test wells, and oil production wells.
2. 73mm oil drill pipe
Suitable for 1000–2000 m, used for medium-depth oil well drilling, with strong versatility and high cost performance, it is one of the most commonly used drill pipe specifications at home and abroad.
3. 89mm oil drill pipe
It improves torsion and compression resistance, and adapts to medium-pressure and high-temperature formations. Suitable for deeper wellheads, generally used for exploration wells below 4000 meters deep.
4. 102mm oil drill pipe
It has extremely strong structural rigidity and bearing capacity, meeting the high strength requirements of marine and ultra-deep wells. It is suitable for deeper wellheads and has the strongest load and pressure bearing capacity. It is mainly used for marine and large oil field exploration.
Conclusion
Oil drill pipes of different specifications have different application scenarios. Selecting appropriate specifications according to the specific oil well depth and requirements will help ensure the success rate and effect of drilling. Of course, the quality and use status of the drill pipe are also one of the important factors that determine the effect of oil well drilling. Therefore, in actual use, it should be strictly inspected and maintained according to the requirements.
