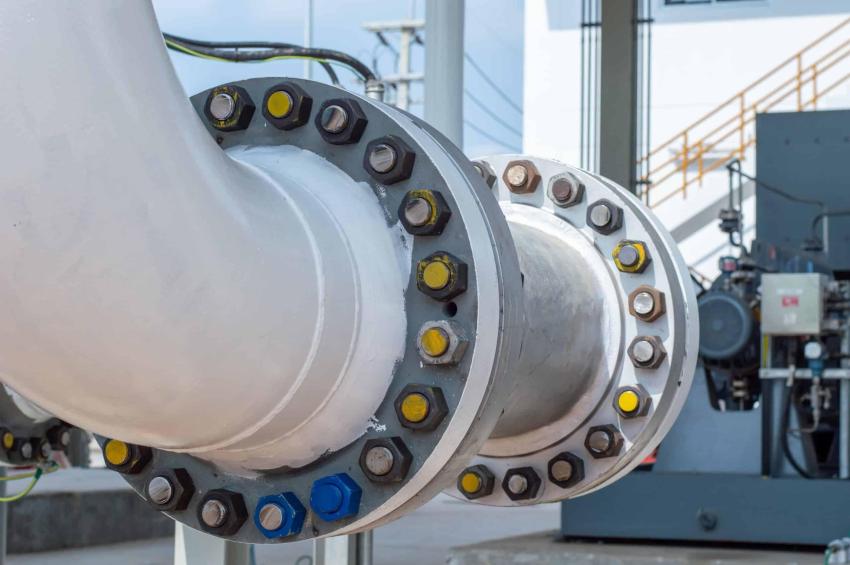

The installation of large diameter pipe elbows requires attention to the following issues:

1. Choose the appropriate elbow model and size
Choose the appropriate elbow model and size according to the system's flow, pressure, temperature and other parameters. The inner diameter of the elbow should match the inner diameter of the pipe to ensure that the fluid can flow normally.

2. Installation direction of the elbow

Elbows usually have a bending angle. When installing, ensure that the bending direction is consistent with the design direction of the pipeline system. Incorrect installation will increase fluid flow resistance and pressure loss.

3. Connection between elbows and pipes
The connection between the elbow and pipe must be firm and reliable to ensure that there is no leakage during installation. Common connection methods include welding, threading, flanges, etc. Choose a suitable connection method and install it according to the specific situation.

4. Support and fixation of elbows
When installing steel elbows, it is necessary to consider their stress conditions and support and fix them according to the actual situation. Ensure that the elbow will not vibrate and displace during operation to avoid damage to the pipeline system.

5. Cleaning and flushing of elbows
Before installation, the elbows need to be cleaned and flushed to remove internal impurities and welding residues to ensure that the fluid can pass smoothly and reduce pollution and blockage of the pipeline system.

6. Coating and anti-corrosion treatment of elbows
In order to extend the service life of the elbows, they can be coated and anti-corrosion treated. According to the actual situation, select the appropriate coating material and anti-corrosion treatment method to improve the corrosion resistance of the elbows.

7. Pressure test of elbows
After installation, the elbows need to be pressure tested to ensure the quality and safety of the installation. The pressure test should comply with relevant standards and specifications. Pay attention to safety during the test to avoid exceeding the bearing capacity of the elbows.

Application areas:

Large-diameter elbows are widely used in the turning points of pipeline systems and have the following application ranges:

1. Turning points in pipeline systems: Large-diameter elbows can be used to replace right-angle bends in pipeline systems, making pipeline layout more flexible and convenient.

2. Exhaust and ventilation systems of pipeline systems: Large-diameter elbows can be used in exhaust and ventilation systems of pipeline systems to facilitate the flow and exchange of gases.

3. Chemical and other industrial fields: Large-diameter elbows can also be used in chemical and other industrial fields, especially in situations where large-diameter pipes are required.

4. Deep wells and drainage systems: In deep wells and drainage systems, large-diameter elbows can be used to bend drainage pipes to meet the special requirements of deep wells.

In short, large-diameter elbows have a wide range of applications in pipeline systems, and large-diameter elbows of different specifications and types can be selected according to different application scenarios.
